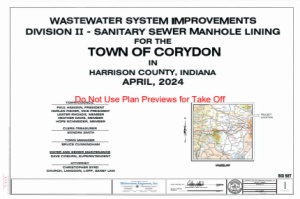

HARRISON COUNTY COMMISSIONERS HARRISON COUNTY COMMISSIONERS 245 ATWOOD ST, SUITE 100 CORYDON, IN 47112 CHARLES CRAWFORD NELSON STEPRO BRAD WISEMAN DISTRICT 1 DISTRICT 2 DISTRICT 3 HARRISON COUNTY HIGHWAY DEPARTMENT HARRISON COUNTY HIGHWAY DEPARTMENT 1359 OLD HWY. 135 SW CORYDON, IN 47112 ATTN: KE\/lN RUSSEL, HIGHWAY DIRECTOR/ COUNTY ENGINEER PHONE: (812)-738-2920 EMAIL: K.RUSSSEL@HARRISONCOUNTY.IN.GOV INDIANA DEPARTMENT OF TRANSPORTATION SEYMOUR DISTRICT 185 AGRICO LANE SEYMOUR, IN 47274 PHONE: (812)-463-6848 FAX: (812)-522-7658 EMAIL: SECOMMUNICATIONS@NDOT.IN.GOV GENERAL NOTES: FALLS CITY SUB DISTRICT 5701 HWY. 31 CLARKS\/1LLE, IN 47129 PHONE: (812)-282-7493 FAX: (812)-282-3497 SHEET SCHEDULE 1 CO\/lER SHEET 2 PLAN SHEET INFORMATION AND 0\/lERALL SANITARY SEWER SYSTEM 3 PROJECT LOCATION MAP 4-7 PLAN SHEETS 8 TYPICAL DETAILS 1. TOPOGRAPHY SHOWN ON PLAN SHEETS IS INTENDED TO SHOW THE GENERAL LOCATION OF FENCES, CUL\/lERTS, DRl\/lES, EXISTING UTILITIES, POINTS OF CONNECTION, ETC. HOWE\/lER; THE EXACT LOCATION AND QUANTITIES SHALL BE \/lERIFIED AT THE TIME OF CONSTRUCTION. 2. THE HORIZONTAL LOCATION DATA IS BASED UPON THE INDIANA STATE COORDINATE SYSTEM (EAST ZONE) REFERENCED TO THE 1983 NORTH AMERICAN DATIJM (NAD83). ELEVATIONS ARE BASED UPON THE 1988 NORTH AMERICAN DATIJM (NAD88). 3. THE CONTRACTOR SHALL CALL INDIANA UNDERGROUND SER\/lCES AT 1-800-382-5544 PRIOR TO ANY GROUND BREAKING TWO FULL WORKING DAYS BEFORE CONSTRUCTION IS TO BEGIN. 4. THE LOCATION OF EXISTING UTILITIES ETC. SHOWN ON THESE PLANS ARE NOT THE EXACT LOCATIONS BUT ONLY A GENERAL LOCATION. ALTHOUGH THESE PLANS HA\/lE ATTEMPTED TO SHOW ALL EXISTING UTILITIES, THE CONTRACTOR SHALL NOT ASSUME ALL EXISTING UTILITIES HA\/lE BEEN SHOWN. THEREFORE IT SHALL BE THE CONTRACTORS RESPONSIBILITY TO SEE THAT ALL EXISTING UTILITIES WITHIN CONSTRUCTION AREAS ARE CLEARLY MARKED IN THE FIELD PRIOR TO ANY CONSTRUCTION IN THE AREA. 5. EXACT LOCATION OF MANHOLES, LATERALS, CLEANOUTS, AIR RELIEF VAL\/lES, ETC. TO BE DETERMINED AT THE TIME OF CONSTRUCTION. 6. DOWN TIME COORDINATION MUST BE MADE WITH THE SEWER UTILITY PRIOR TO BYPASSING OF SEWER MAINS. COORDINATE WITH THE WATER AND WASTEWATER OPERATOR, DA\/lD COBURN AT (812) 738-3958 A MINIMUM OF Fl\/lE (5) WORKING DAYS PRIOR TO SHUT DOWN OF EXISTING MAINS. 7. PROPERTY LINES, WHERE SHOWN, ARE BASED UPON COUNTY PLAT RECORDS. THE SAID PROPERTY LINES ON THESE PLAN SHEETS DO NOT REPRESENT PROPERTY SUR\/lEYS, BUT ARE ONLY APPROXIMATE LOCATIONS FOR REFERENCE PURPOSES ONLY 8. THE CONTRACTOR SHALL AVOID IN CHANNEL WORK (AT STREAM CROSSINGS) DURING THE FISH SPAWNING SEASON (APRIL 1 THROUGH JUNE 30) WITHOUT PRIOR WRITTEN APPROVAL OF THE INDIANA DEPARTMENT OF NATURAL RESOURCES-DIVISION OF FISH AND WILDLIFE. 9. IF ANY ARCHEOLOGICAL ARTIFACTS OR HUMAN REMAINS ARE UNCO\/lERED DURING CONSTRUCTION, THE CONTRACTOR SHALL STOP ALL EXCAVATION WORK AND CONTACT THE INDIANA DEPARTMENT OF NATURAL RESOURCES, Dl\/lSION OF HISTORIC PRESERVATION AND ARCHEOLOGY, PHONE No. 317-232-1646. NO ADDITIONAL EXCAVATION WORK SHALL BE DONE WITHOUT RECEl\/lNG THEIR APPROVAL. 10. THE CONTRACTOR SHALL BE REQUIRED TO IMPLEMENT DUST CONTROL MEASURE (SURFACE WETTING) AS NECESSARY TO MINIMIZE FUGITl\/lE DUST EMISSIONS. 11. IF CA\/lERNS OR SPRINGS ARE ENCOUNTERED DURING EXCAVATION, WORK SHALL STOP IMMEDIATELY AND THE INDIANA DEPARTMENT OF NATURAL RESOURCES OR THE U.S. FISH & WILDLIFE OFFICE SHALL BE CONTACTED CONCERNING PROPER MITIGAllON MEASURES. 12. ALL SINKHOLES THAT OCCUR IN CONSTRUCTION AREAS SHALL BE LEFT UNDISTURBED ALONG WITH A 25 FOOT BUFFER AROUND THE HIGHEST CLOSED CONTOURS OF THE SINKHOLE. EXISllNG VOLUME OF SURFACE DRAINAGE TO SINKHOLES SHALL BE MAINTAINED AND DRAINAGo FROM CONSTRUCTION SITI:S WILL BE FILTERED OR TREATED PRIOR TO ENTERING A SINKHOLE. UTILITIES TELECOM: FRONTIER COMMUNICATIONS 24373 Country Rood 45 ELKHART, IN 46516 ATTN: PHIL NASH PHONE: 574-875-3796 ELECTRIC: DUKE ENERGY 390 N MAIN ST. MARTINSVILLE, IN 46151 ATTN: TIM UMBAUGH PHONE: (765)-349-4012 MAP EMAIL: PHILNASH@FTR.COM EMAIL: TIM.UMBAUGH@DUKE-ENERGY.COM CABLE TV: FIBER OPTIC: \\lNDSTREAM COMMUNICATIONS 111 S. MAIN ST. ELIZABETHTOWN, KY 42701 PHONE: (270)-765-1892 INSIGHT COMMUNICATIONS 3408 INDUSTRIAL PARKWAY JEFFERSON\/lLLE, IN 47130 ATTN: DA\/lD BROWN PHONE: ( 812)-288-6471 FAX: (513)-229-0423 MAINSTREAM FIBER NETWORKS, LLC 2370 LANDMARK WAY NE, UNIT 102 CORYDON, IN 47112 PHONE: (844)-752-6736 UNITE PRIVATE NETWORKS 1828 WALNUT ST, FLOOR 6 KANSAS CITY, MO 64108 PHONE: (816)-903-9400 FAX: (816)-903-9401 Know what's below. Call before you dig. GAS: WATER: SANITARY SEWER: HARRISON COUNTY R.E,M.C. 1165 OLD FOREST RD NW CORYDON, IN 47112 PHONE: 812-738-4115 INDIANA UTILITIES CORPORATION 123 W. CHESTNUT ST. CORYDON, IN 47112 PHONE: (812)-738-3235 FAX: (812)-738-1512 TOWN OF CORYDON 219 N. CAPITOL AVE. CORYDON, IN 47112 ATTN: STACY SAILOR PHONE: (812)-738-3958 TOWN OF CORYDON 219 N. CAPITOL AVE CORYDON, IN 47112 ATTN: LARRY FESSEL PHONE: (812)-738-3958 OVERALL SANITARY SEWER SYSTEM MAP > • 0 0 LIFT STATION No. 5 LIFT STATION No.12 PRIVATE LI NOTE ALL EXISTING GRAVITY MAINS ARE 8" UNLESS OTHERWISE NOTED PRIVATE LIFT STATION OUMR..l'l.'ID PRIVATE LIFT STATION LEGEND Existing GravityMain andSize 0 • • .. r Existi11g GravityMain and Size To be Lined (See Division/) - - - - - ..!:.'"'L.. - - - - - ExistingForce Mtlln ;mdSize ----8>---- -----8----- -------r,e,---- 0 8 -----@)----- -----@----- ExistingManhole ExistingManhole Previouslyli;1ed ExistingManhole To be lined ExistingPlug Valve ExistingAi, Reliere Valve Existing Vii!ve Pit faisting liftStation PRIVATE LIFT STATION LIFT STATION No. 13 • - SCAtE -,.,.,.,1,000' Rf.VISIONS BID SET C 2024 Midwe�tem Engine�rs. Inc. 802 Wes! Broadway S1n,c1 P.O. Box 295 Loogooke. lnciiam1 47553 DATE APRIL 2024 DESIGN J.W.W./_ E.K.P. DRAWN C.Z.M. Q.C. CHECK PROJECT NUMBER 2024002-01 2 2 OF 8 I FllE NUMBER �L\ 19 :;- I Do Not Use Plan Previews for Take Off
